Lower grid reliance
Generate and store more electricity on site, reducing reliance on imported grid energy.
Case Study
Domestic Solar PV & Battery Storage Installation
20kWh energy storage
Excess solar generation can be stored for use later in the day and during higher-demand periods.
Optimised performance
Tigo optimisation supports panel-level performance across the property’s multiple roof faces.
Future-ready system
A modern solar and battery platform designed around long-term domestic energy use.
The installation

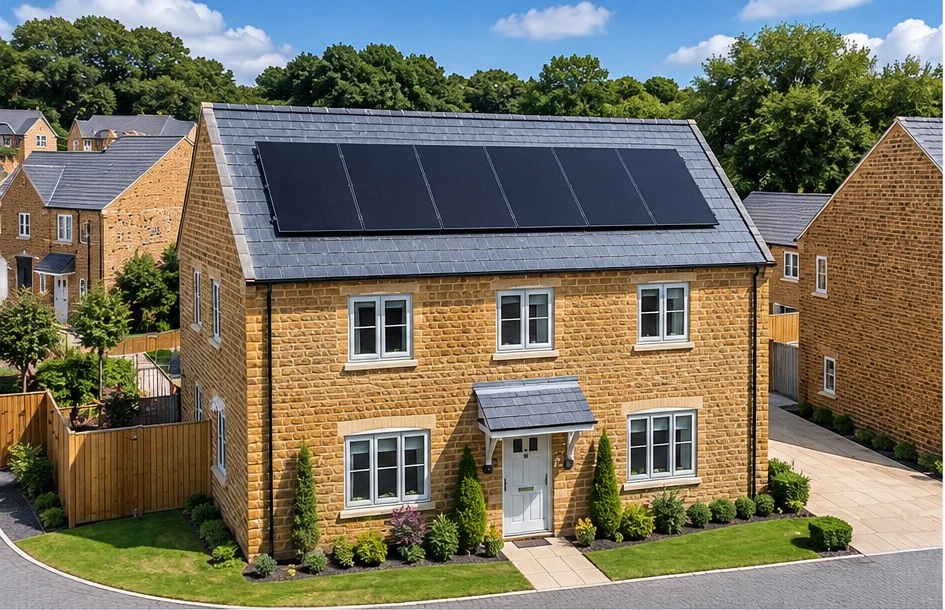

An 8.16kW solar and 20kWh battery installation designed around the home.

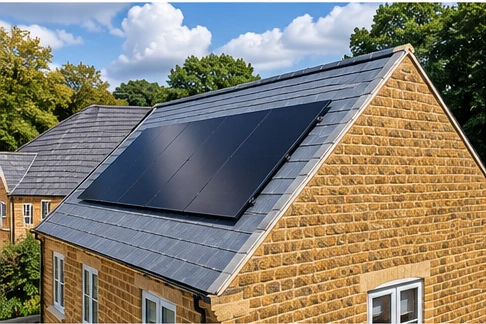

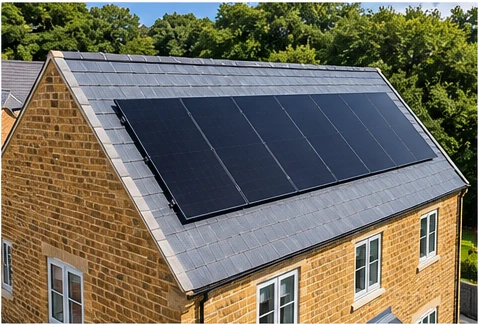

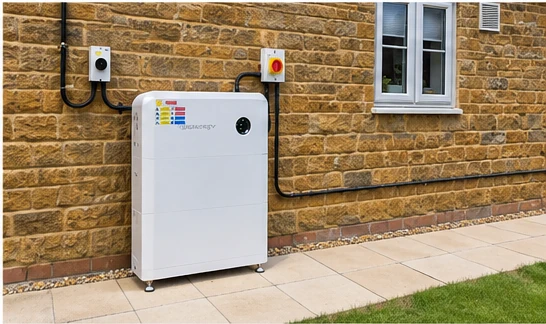

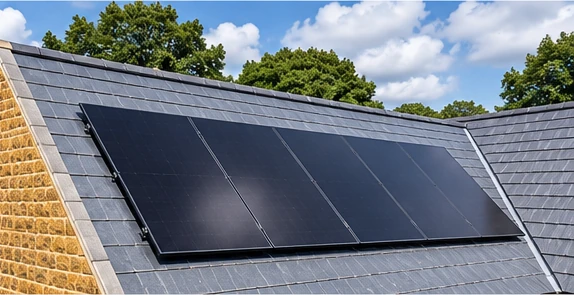

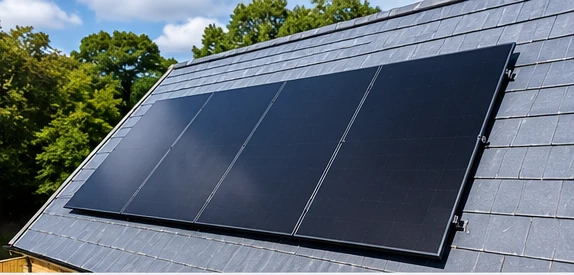

The system was designed around the available roof space across three roof faces. A total of 17 high-output LONGi solar modules provide an 8.16kW array, with Tigo optimisers used across selected modules to support performance where roof orientation and shading conditions vary. Energy management is handled by a 5kW Sigenergy inverter together with two 10kWh Sigenergy batteries, providing 20kWh of storage capacity.
By combining solar generation, panel-level optimisation and substantial battery storage, the installation gives the homeowner greater flexibility over when generated electricity is used while making effective use of the available roof area.
Project gallery
From installation to completed system.
A closer look at the equipment and workmanship delivered by NS Booth.
